Ideal for electrical troubleshooting & straightforward maintenance, initial start-up testing & R&D in industry. Also suitable for use by government authority?s, test lab & manufacturing.

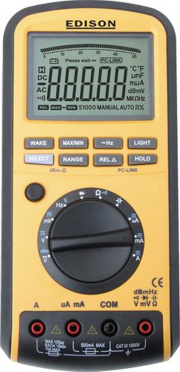

The high accuracy digital multimeter with its USB interface
is capable of testing the following;
- Linear frequency from 5Hz to 200KHz.
- Logic frequency from 5Hz to 2MHz.
- Duty cycle from 5% to 95%.
- Diode testing from 0 to 2.5V.

AC/DC voltage up to 1000V.
AC/DC current up to 10A.
Resistance up to 50MW.
Capacitance up to 5000mF.
Relative measurement function.
Clear display with LED back light & data hold function.
Auto power ?OFF? & low power indicator.
Digital display count up to 50000.
Conforms to IEC 10101, CAT II 1000V and CAT III 600V.

Pack includes:
- Digital Multimeter
- Test probes
- Clamp-on trat leads
- USB Interface conection
- CD ROM ?PC-LINK? software (Compatible with Windows 98ME, 2000, NT or XP)
- 6x 1.5V AAA batteries (installed)
- Instruction manual
- Protective case with carry strap

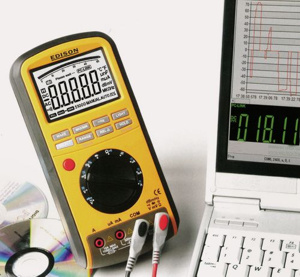

PC-LINK software features:
- Measure graph
- Measure data record
- Simulate LCD display
- Analogue dial plate display
- Measure Max/Min display
- Sampling interval
- Graph export
- Measure data save

Product Dimension: (W)178 x (D)65 x (H)255 mm
1018g Gross Weight
