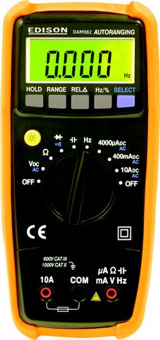

Ideal for electrical and electronic engineers. Automatic range and over range indication. Ten position rotary switch. Large, 25mm digital display with backlight.Measures DC voltage, AC voltage, resistance, capacitance, frequency,.other functions include auto and manual range modes, relative measurement, data hold, diode test, continuity test and duty cycle test function Supplied with 9V battery protective cover and stand, test probes operators' manual and deluxe fitted nylon case.Complies with IEC1010 for measurement on 600V Cat III installations.
Display: 3999 COUNTS. 25mm High digital display.
DC Voltage: 400m/4/40/400V/-0.7%, 1000V/-0.8%
AC Voltage: 4/40/400V/-0.8%, 750V/-1.0% (40Hz to 400Hz)
DC Current: 4000 mu /400ma/-1.2%, 10A/-2.0%
AC Current: 4000 mu /400ma/-1.5%, 10A/-3.0% (50Hz to 400Hz) Resistance: 400/4K/40K/400K/4M?/-1.2%, 40M?/-2.0% Capacitance: 4nf/-5.0%, 40n/400n/4 mu /40 mu /200 mu F/-3.0% Frequency:10/100/1000/10K/100K/1000K/10mhz/-2.0%
Duty cycle: 0.1%99.9%/-2.0%
Diode test autorange and manual range relative measurement data hold back light Power: 6F22(9V) x 1 Size: 185 x 84 x 38mm Weight: 285g (including battery)
Edison™ multimeters are an essential and versatile piece of test equipment. They are used by qualified electricians and mechanics alike to perform various essential tests and measurements on delicate electronic systems, automotive devices, mains appliances, and installations. By operating the multi position switch they can quickly and easily set to be a voltmeter, an ammeter or an ohmmeter. Within the Edison™ range of multimeters you will find direct reading multimeters and non-contact reading multimeters.
¡@
