Ideal for electrical troubleshooting & straightforward maintenance, initial start-up testing & R&D in industry.

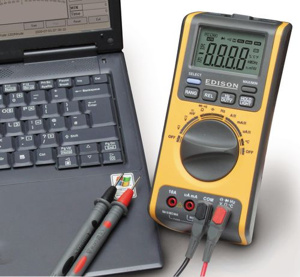

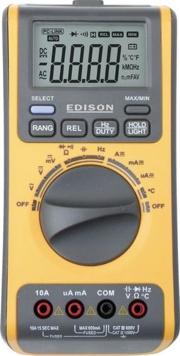

The digital multimeter with its USB interface for the
PC is capable of testing the following;
- Electrical testing.
- Temperature testing (K Type) from -5C to 1000C.

AC voltage up to 700V.
DC voltage up to 1000V.
AC/DC current up to 10A.
Resistance up to 60MW.
Capacitance up to 300mF.
Frequency/Duty cycle from 1Hz to 1MHz.
Diode testing & buzzer.
Relative measurement function.
Clear display with LED back light & data hold function.
Auto power ?OFF? & low power indicator.
Auto/manual range.
Electronic protection system.
Digital display count up to 6000.
Conforms to IEC 1010, CAT II 1000V & CAT III 600V.

Pack includes:
- Digital Multimeter
- Test probes
- Temperature sensor
- Clamp-on test lead
- USB Interface
- CD ROM ?PC-LINK? software (Compatible with Windows 2000, NT or XP)
- 9V battery (installed)
- Instruction manual

PC-LINK software features:
- Measure graph
- Measure data record
- Simulate LCD display
- Analogue dial plate display
- Measure Max/Min display
- Sampling interval
- Graph export
- Measure data save

Dimensions: 165(W) x 65(D) x 230(H) mm
182g Gross Weight
