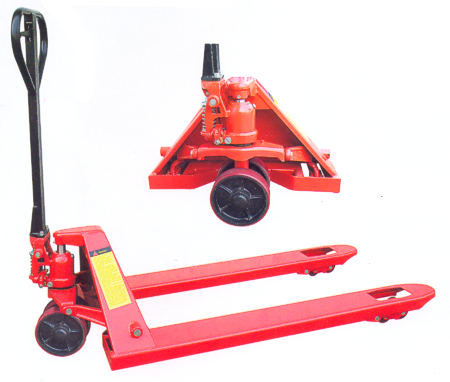

DYP-20-0424 Daypower 3 Ton Hydraulic Hand Pallet Truck ¡@ |
|
Top quality hydraulic Pallet Truck is made by investment casting , Hard chrome plated position and pump Plunger ensure wear-resistant and corrosion resistance. Full adjustable push rods under forks ensure stability of forks. Special specification can be manufactured according to customer¡¦s demands. |
¡@
¡@
DAYPOWER HAND PALLET TRUCK SPECIFICATION:
| Parameters\Model | DYP-20-0424 |
| Capacity(kg) | 3000 |
| Lowered fork height H1(mm) | 85/75/65 |
| Total lift height H2(mm) | 195/185/175 |
| Fork length L(mm) | 1220 |
| Width over the forks W(mm) | 685 |
| Steeeringwheel A(mm) | £p160 |
| Fornt wheel B(mm) | £p60 |
| Self weight (kg) | 73-92 |
¡@
