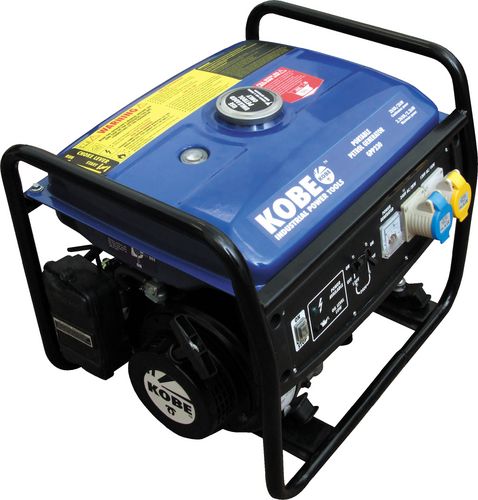

The Kobe GPP230 frame mounted petrol generator can deliver a 2.3kVA 110V or 220V supply for up to nine hours on a single tank of fuel; making it ideal for builders, contractors, mobile caterers, etc. for powering lighting, freezers, power tools, water pumps and
other electrical items.
Features include:
Brushless alternator producing:
2.3kVA/2.3kW maximum power,
2kVA/2kW continuous power.
One 220V AC and one 110V AC outlet.
Voltmeter.
Circuit breakers.
12 litre fuel tank with fuel level indicator.
Approximately 9 hours running time.
4 stroke, 6.0hp, OHV, single cylinder, air cooled engine that runs on unleaded petrol.
Low oil alert and shutdown.
Recoil starter.
GPP230 Specification:
Fuel Tank Capacity: 12L.
Fuel Type: Unleaded petrol.
Oil Capacity: 0.6L.
AC Output: 220V/110V 60Hz Single phase.
Continuous Power: 2kVA/2kW.
Maximum Power: 2.3kVA/2.3kW.
Engine Type: 6.0hp, 4 - stroke, OHV, single cylinder, air cooled, 3,000rpm, 171cc displacement.
Alternator Type: Brushless.
Sound Power Level: 94dBA.
Sound Pressure: 72.2dBA.
Running Time: Approx. 9 hours @ 75% load.
Net Dimensions: 425x515x430mm (HxWxD).
Net Weight: 39kg.
It is advisable to properly earth (ground) the Generator before using it. Use a 1.2mm2 copper wire attached at one end to the Generator?s earth connection point and the other end connected to an earthing rod set in the ground.
This will also dissipate the static electricity which will build up in the Generator during use.
Please note:
The earth wire and rod are not supplied with the Generators. An earthing rod kit is available separately: Order Code: KBE-280-9000K.
- KBE273-3100K
- Manufactured by: KOBE Power Tools
¡@
