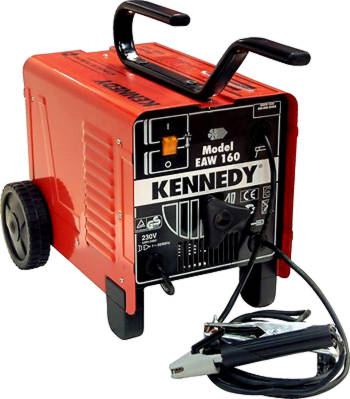

Kennedy KEN880-2040K Arc Welders
The Kennedy Cheetah EAW 160 AC MMA welder is a portable 230V single phase arc welder suitable for use with rutile electrodes of 2-4mm diameter. It is capable of welding mild steel up to 8mm and features a step less regulator for infinite variable control of the welding current to ensure that this highly efficient transformer maximises its full potential. In built safety features include thermal overload protection and turbo fan cooling that enables the Cheetah to weld at greater power for longer periods helping to reduce weld time. The unit has a top handle and two wheels for easy positioning around the workshop. Operates from a 230V 13amp standard domestic socket. The Cheetah is built to last with a heavy duty outer steel casing to withstand workshop knocks and bumps and a 2 year warranty.
Supplied complete with accessories, two large diameter solid wheels, integrated carrying handle and 2m mains cable.
Conforms to TUV-GS, GOST, EMC, LVD and all relevant CE requirements. Insulation class H. Protection degree IP21.
Cheetah EAW-160 AC MMA Welder
Cheetah Specification:
Contents:
CheetahTM AC power supply.
1.8m primary cable, 16mm2.
1.8m earth cable and 250A clamp.
Hand held face shield with 51 x 107mm glass.
Scratch brush and slag remover.
Instruction manual.
Input voltage: 230V, 50/60Hz.
Fuse rating: 16A.
Phase: 1.
Power consumption: 2.5kW.
Output current range: 55A - 160A.
Open circuit voltage: 50V.
Dimensions: (L x W x H)
585 x 325 x 425mm.
¡@
