Kennedy KEN880-2020K Arc Welders

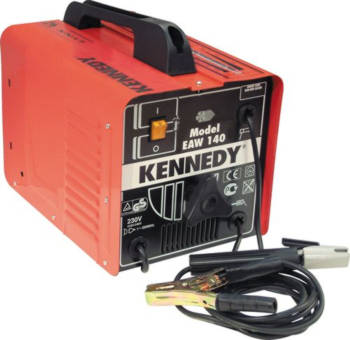

The Kennedy Lynx EAW-140 is a portable 230V single phase arc welder that features a stepless regulator for infinite control of the welding current and safety features that include fan cooling and overload protection. Suitable for use with rutile electrodes of 1.6 to 3.2mm diameter.
Supplied complete with accessories, integrated carrying handle and 2m mains cable.
Conforms to TUV-GS, GOST, EMC, LVD and all relevant CE requirements.
Insulation class H. Protection degree IP21.
Lynx EAW-140 AC MMA Arc Welder
Supplied complete with: 1.8m primary cable, 10mm2. 1.8m earth cable and 150A clamp. Hand held face shield with 51 x 107mm glass. Scratch brush and slag remover. Instruction manual.
Contents:
LynxTM AC power supply.
1.8m primary cable, 10mm2.
1.8m earth cable and 150A clamp.
Hand held face shield with 51mm x 107mm glass.
Scratch brush and slag remover.
Instruction manual.
Input voltage: 230V, 50/60Hz.
Fuse rating: 13A.
Phase: 1.
Power consumption: 2.5kW.
Output current range: 40A - 140A.
Open circuit voltage: 50V.
Dimensions: (L x W x H)
270 x 250 x 310mm.
¡@
