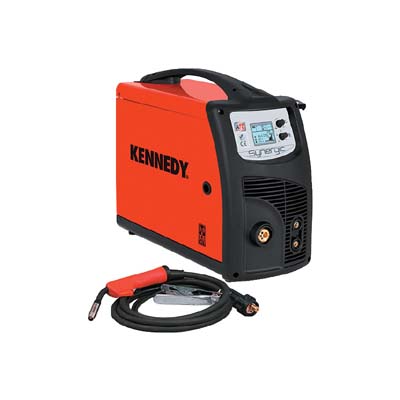

220A multi-process (MIG/TIG/MMA) welding machine with MIG accessories. Synergic control allows easy machine set up and control in all welding processes. MIG/MAG process offers both Gas and gasless welding and also Mig Brazing. Lift TIG is ideal for all stainless and mild steel applications. MMA welding up to 3.2mm electrodes in both mild and stainless steel. Ideal for small to medium workshops and mobile welders and maintenance and installation engineers.
• Compact and light (22KG without wire)
• Compatible with 5-15KG spools of wire
• Microprocessor controlled MIG-MAG/FLUX/Brazing, DC Lift TIG and MMA welding
• Fast Synergic adjustment to welding parameters through 'ONE TOUCH' technology
• Intelligent and automatic Arc control
• Manual setting adjustment to suit welders style and technique
• ONE TOUCH LCD graphic display allows better reading of welding parameters, voltage, current and welding wire speed
• ATC: Advanced Thermal Control, indispensable on thin surfaces and material sensitive to deformation caused by high temperatures.
• 17 different synergy curves.
• Regulation of wire feed up slope (soft start).
• Burn back timer and post gas.
• Spot welding operation.
• Generator safe (Min 9 kVA required).
• Over/Under voltage protection.
• Thermal cut out.¡@ |
|
Property |
Value |
|
Output Current Range : |
20 to 220A |
|
Duty Cycle : |
100A @ 60%
180A @ 20%
|
|
Open Circuit Voltage : |
78V |
|
Input Voltage : |
230V |
|
Fuse Rating : |
16A |
|
Phase : |
1 |
|
Electrode Size : |
1.6 - 3.2mm |
|
Wire
Size
: |
Aluminium Welding Wire 0.8 - 1.0mm
Brazing Wire 0.8 - 1.0mm
Fluxed Cored Welding Wire 0.8 - 1.2mm
Inox Welding Wire 0.8 - 1.0mm
Steel Welding Wire 0.6 - 1.0mm
|
|
IP Rating
: |
IP23 |
|
MFR Part No.
: |
Lion |
|
Weight
: |
22kg |
|
Dimensions (L x W x H) : |
620x260x490mm |
|
Manufacturer Guarantee: |
2 Year Manufacturer's Guarantee (T&Cs
Apply). |
|
Includes : |
3m Mig Torch
Work Return
|
¡@
