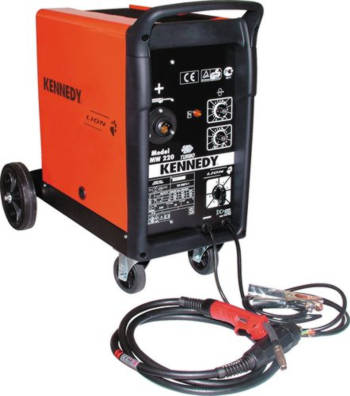

Kennedy KEN880-1980K Lion™ EMW 220 Compact MIG Welder
Heavy-duty transformer and turbo fan cooling allows welding at higher power for longer periods. Automatic wire speed control with manual override. Professional torch with trigger-controlled power and gas prevents undesired arcing and gas wastage. The torch cable can be detached from the machine. 35A minimum output. Accepts 0.7kg, 5kg and 15kg spools for maximum portability and economy. Heavy duty case for durability. Mig/Mag (gas) welding only. Six position, stepped voltage regulator allows process selection to be pre-set. Supplied complete with a smooth action, twin roller feed unit, two large diameter solid wheels and 2m mains cable. Suitable for automotive, farm, maintenance and contractor use. Conforms to TUV-GS, GOST, EMC, LVD and all relevant CE requirements.
Insulation class H. Protection degree IP22.
Lion™ Specification:
Welding capacity: steel wire 0.6-1mm, stainless steel wire 0.8mm, aluminium wire 0.8 - 1.0mm.
Maximum reel size: 15kg.
Input voltage: 230V, 50/60Hz.
Fuse rating: 16A.
Phase: 1.
Power consumption: 3.7kW max. (1.4kW 60%).
Output current range: 30A-220A (DC).
Open circuit voltage: 17.8-34V.
Product dimensions (L x W x H): 78 x 45 x 71cm.
Box dimensions (L x W x H): 84 x 35 x 57cm.
Contents:
Lion EMW-220 power supply.
1.5m cable, 16mm2.
Earth clamp, 150A.
2.5m Mig torch, 160A.
Mig wire reel 0.8mm x 0.2kg.
Instruction manual.
¡@
