KENNEDY
KEN515-5540K
HEAVY DUTY RATCHET CRIMPING TOOLKIT 552-PCE
¡@
-
-
 ¡@
¡@
-
Kennedy KEN515-5540K
Heavy
Duty Ratchet Crimping
Tool Kit 552 pcs
Heavy
duty 220mm ratchet
crimper with a selection
of pre-insulated red,
blue and yellow
electrical connector
terminals, cable ties
and insulation tape.
Ratchet crimper has
laminated steel jaws
with strengthened PVC
handle grips.
Suitable
for crimping insulated
terminals as follows:
red channel: 0.5 -
1.00mm², blue channel:
1.5 - 2.5mm², yellow
channel: 4.0 - 6.0mm².

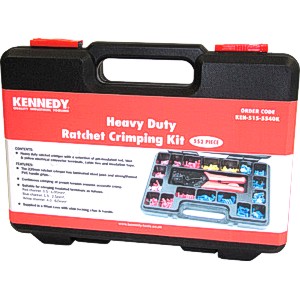

Supplied
in a fitted case with
slide locking clips and
handle.

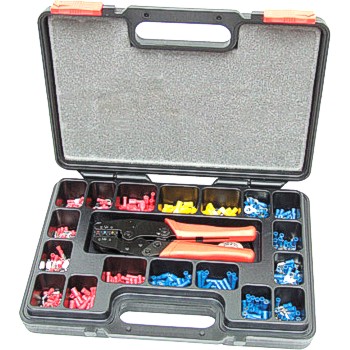

Kit
contents: Heavy duty
ratchet crimper, black
insulation tape (19mm x
9m), black cable ties
(2.5 x 100mm).
Ring
connectors: red - 3.7,
4, 5mm, blue - 3.7, 4,
5, 6mm, yellow - 4, 5mm.
Butt
connectors: red - 1.5 x
1.5mm2, blue - 1.5 x
2.5mm2.
Push-on
spade connectors - male:
red, blue, yellow - 6.3
x 0.8mm.
Push-on
spade connectors -
female: red, blue,
yellow - 6.3 x 0.8mm.
Push-on
spade covered connectors
- female: red, blue -
6.3 x 0.8mm.
Push-on
piggy back connectors -
female: red, blue - 6.3
x 0.8mm.
Bullet
connectors - male: red,
blue - 4mm.
Bullet
connectors - female:
red, blue - 4mm.
|
Brand
|
Kennedy
Industrial |
|
Number
of
Pieces : |
552
|
|
Overall
Depth : |
70 |
|
Overall
Length : |
360 |
|
Overall
Weight : |
1.765 |
|
Overall
Width : |
270 |
¡@ |
¡@
¡@
|
