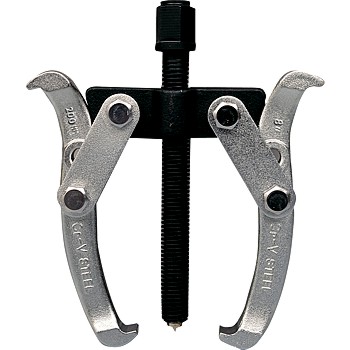

KENNEDY KEN503-3080K
-
8"
2-JAW
DOUBLE
ENDED
MECHANICAL
PULLER
-
¡@
-
¡@
-
- ¡@
-
- ¡@
- ¡@
¡@
¡@
-
Kennedy KEN503-3060K
8"
2 Jaw Mechanical
Bearing Pullers
Industrial
Reversible/Double-Ended
Adjustable
Used
for the removal of
gears, ball races,
bearings, pulleys
and sprockets from a
drive shaft. With
reach capacities of
75mm, 100mm, 150mm
and 200mm. All sizes
have double-ended,
adjustable,
reversible legs and
can be used for
internal and
external
applications.
Selection: Always
use a three jaw
puller whenever
possible. This
produces better load
distribution across
the jaws and easier
and safer removal of
the part. Determine
what 'spread' is
needed - this is the
width of the part to
be removed. The
reach capacity is
determined by the
depth of the part to
be removed.
All
pullers can be
assembled for
internal or external
use.
2 Jaw
Pullers - Supplied
with both 2-legged
yoke
2 Jaw
-Internal Assembly
2 Jaw
-External Assembly
|
Brand |
Kennedy
Industrial |
|
Overall
Depth |
57 |
|
Overall
Length |
333 |
|
Overall
Weight |
3.9 |
|
Overall
Width |
272 |
|
Product
Number |
MP2150 |
|
Reach |
175 mm |
|
Spread |
80 - 200
mm |
|
Thread
Length |
335 mm |
¡@¡@ |
¡@
¡@
|
