Oxford OXD315-1400K 18-35MM Dial Indicating Bore Gauges, 29mm 1 1/8” Dial Diameter. Stock available at Highway Marketing Sdn. Bhd, Sibu, Sarawak, Highway Marketing Sdn. Bhd. Bintulu Branch, Highway Marketing Sdn. Bhd. Miri Branch, Malaysia.

OXFORD OXD315-1400K

18-35mm DIAL BORE GAUGE

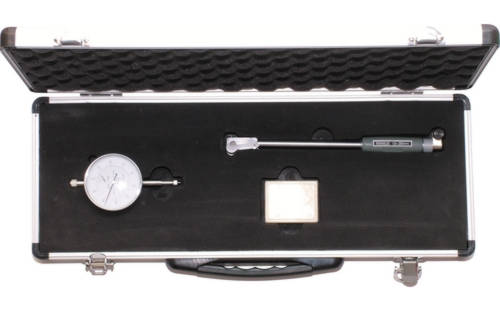

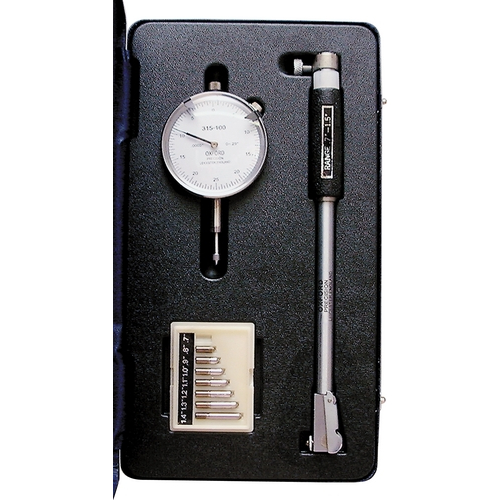

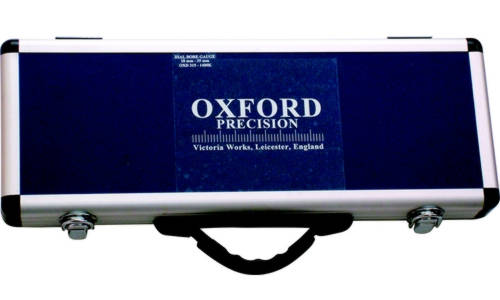

Oxford OXD315-1400K 18-35MM Dial Indicating Bore Gauges 29mm 1 1/8” Dial Diameter Suitable for rapid, accurate measurement of size, concentricity, wear, taper, etc., in a wide range of bores. For workshop and inspection use. All models have one fixed and one moving anvil and a self-adjusting centre shoe. A ‘datum point’ can be set by using a setting ring of a known diameter or a micrometer. ‘ Zero’ the gauge to this datum point by rotating the bezel to align ‘zero’ with the indicator. To check a bore is within tolerance, the limit hands can be fixed as required. All anvils are spring loaded to expand into the bore. For accurate reading ensure the stem of the gauge is parallel to the axis of the bore. This can be checked by ‘rocking’ the gauge back and forth until the smallest diameter is found. All models have inter-changeable anvils to cover a range of bore sizes. Supplied in a tough hard case. Type - Metric Graduation: 0.01mm Face Dial: 57mm Reading: 0-100 Travel Per Rev: 1mm Total Travel: 3mm
　
Model: OXD315-1400K
Bore Depth: 200 mm
Range: 18-35 mm
Weight Each: 0.58 kg
Manufactured by: OXFORD PRECISON
