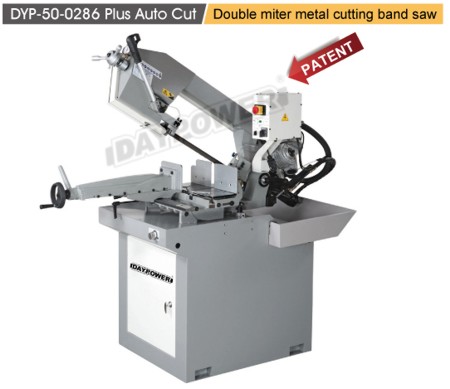

DYP-50-0286 Auto Cut Band Saw, Miter Cutting 0 ° to 60 °

Max Cutting capacity up to 260mm

Quick Clamping Vise, equipped with short range sliding device Max Open 300mm

Adjustable of the blade tension from the front side of saw-frame, checked by an

tension gauge at blade tension 1500kg/cm2.

　

Blade guide with hard metal pads.

　

3-way selector: A. Manual cut

B. Fast drop of the saw frame toward the material.

C. Auto cut with adjustable down-feed rate.

　

Cutting with cooling system.

　

Recede from two-support vise to increase cutting capacity to 330mm

　

Join the "BTS" (bearing Turn System) on the swivel head of machine, could

turn the saw-arm by 2 fingers.

　

Easy to clean the chips with moveable chip tank.

　

　

Model	DYP-50-0286
Size	260mm
Motor	AC Motor 3 Phase 1.6HP
Blade Speed	Motor : 37 - 76 rpm
Blade Size	2730 x 27 x 0.9mm
Cooling	Yes
Dimension	1550 x 800 x 1480mm
