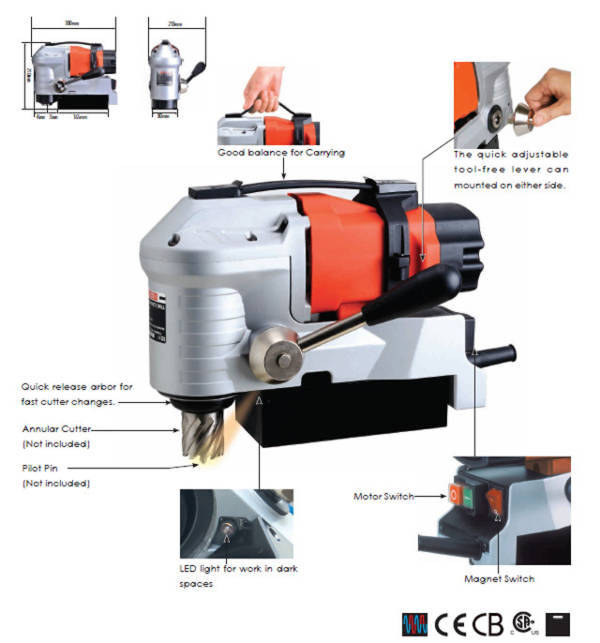

PMD3530 Low Profile Magnetic Drilling Machine
¡@

The PMD3530 Our incredible new low clearance mag drill can enter spaces impossible to reach with a conventional mag drill.

Although the total height is only 198mm, conventional 30mm length cutters can be used. No need for special cutters.
Model  PMD3530
Power Input 1100W
Voltage 110-120V~ 50-60Hz, 220-240V~ 50-60Hz
No / Full Load min-1 650 / 390
Max. Capacity Dia. X Depth of Cut 35mm x 35mm
Weldon Shank 19.05mm
Magnetic Adhesion 15,000 N
Net Weight 10kg ( 22.4Lbs )
STANDARD ACCESSORIES:
*
Safety Belt
*
Chip Guard Kit
¡@
OPTIONAL ACCESSORIES:
*
Overload Protection
¡@

¡@
