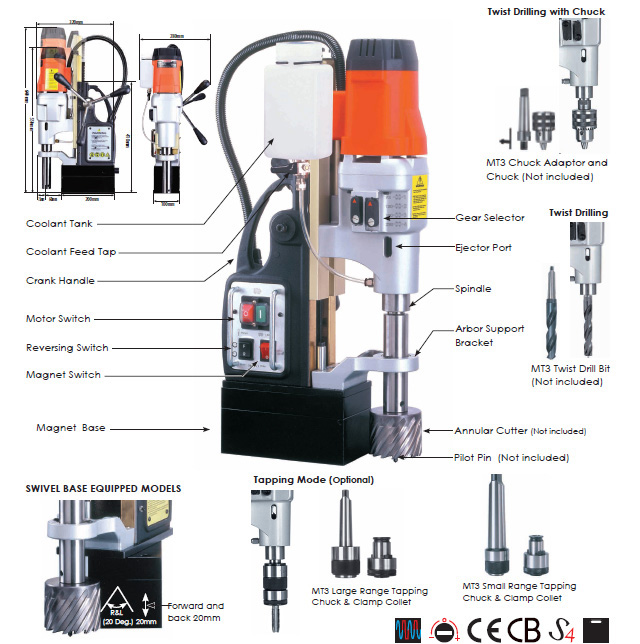

ME7500 4-SPEED Magnetic Core Drill
¡@
   Four mechanical speeds with reversing switch for a large range of capabilities. Unique MT3 arbor
   with cutting fluid feed
¡@
Model
¡@		 MD750/4
Power Input 110-120V:1700W, 220-240V:2000W
Voltage 110-120V~ 50-60Hz, 220-240V~ 50-60Hz
No / Full Load min-1 Speed 1 150 / 90
Speed 2 200 / 120
Speed 3 300 / 180
Speed 4 380 / 230
Max. Capacity Dia. X Depth of Cut 75 mm x 50 mm (3" x 2")
Dia. X Depth of MT3 Twist Drill Bit 32 mm x 150 mm (1-1/4" x 4-7/8")
Dia. X Depth of MT3 Chuck Adaptor With Twist Drill Bit 16 mm x 110 mm (5/8" x 4-5/16")
Dia. X Depth of Taps 25.4 mm x 40 mm (1" x 1-9/16")
Magnetic Adhesion 32,000 N
Overload Protection With
Net Weight 24.8kg ( 54.56 Lbs)
STANDARD ACCESSORIES:
*
Wrench M8
*
Hex. Key M2.5
*
Hex. Key M4
*
Chip Guard Kit
*
Coolant Tank Kit
*
Safety Chain
*
Drift
¡@
OPTIONAL ACCESSORIES:
*
MT3 Chuck Adaptor
*
5/8" (16mm) Chuck & Chuck Key
*
MT3 Tapping Adaptors
*
Tapping Attachments
*
Pipe Vise
*
Quick-Release Arbor
¡@
¡@
¡@

¡@
