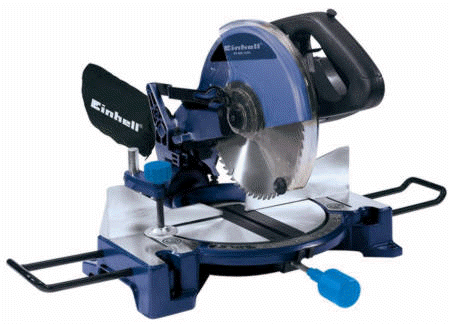

Einhell BT-MS 250
L Mitre Saw
With its integrated laser, the
BT-MS 250 L mitre saw combines user-friendliness with precision on
crosscuts and miter cuts in workpieces made of wood, laminated panels
and plastics. The high-quality work table made of die-cast aluminium
comes with an exact angle adjustment facility which can be latched
single handedly in various positions.
The saw head is infinitely
tiltable to the left, enabling the saw to cut miters and chamfers in any
angle up to 45¢X. All the scales are easy to see from the working
position. For secure fastening of the workpiece there are supports on
both sides and a sturdy clamping device. The carbide-tipped saw blade
with 250 mm diameter and 60 teeth has a long service life and is
comfortably changed thanks to the spindle lock. A sawdust bag keeps the
workplace clean. A transport brace is provided for easy and safe
transportation.
¡@
¡@
¡@
Technical Data
|
Mains |
230 V ~ 50 Hz |
|
Power |
1600 W |
|
Idle speed |
4800 min-1 |
|
TCT Saw blade |
Ø250 x Ø 30mm |
|
No. of teeth |
60 |
|
Swiveling range |
45 ¢X - +45 ¢X |
|
Mitre cut |
45 ¢X - +0 ¢X |
|
Cutting width
until max. |
120 mm |
|
Max. saw width
90¢X x 90¢X |
120 ¡Ñ 75 mm |
|
Max. saw width
90¢X x 45¢X |
87 ¡Ñ 75 mm |
|
Max. saw width 2
x 45¢X |
80 ¡Ñ 35 mm |
|
Max. saw width 45¢X
x 90¢X |
120 ¡Ñ
40 mm |
|
Max. saw width
45¢X
x 45¢X |
85 ¡Ñ 40 mm |
